The Most Cost Effective Safety

VanishPoint IV Catheters

The VanishPoint Safety IV Catheter utilizes patented automated retraction technology.  Its safety mechanism minimizes exposure to the contaminated needle.  The color-code (on both the catheter hub and the housing) indicates the various needle gauges.

Icon
Product Video
Icon
Product Usage Flyer
Icon
Product Brochure
Artboard-6

Cost Effective Automated Retraction

A safety IV catheter featuring the patented VanishPoint automated retraction.

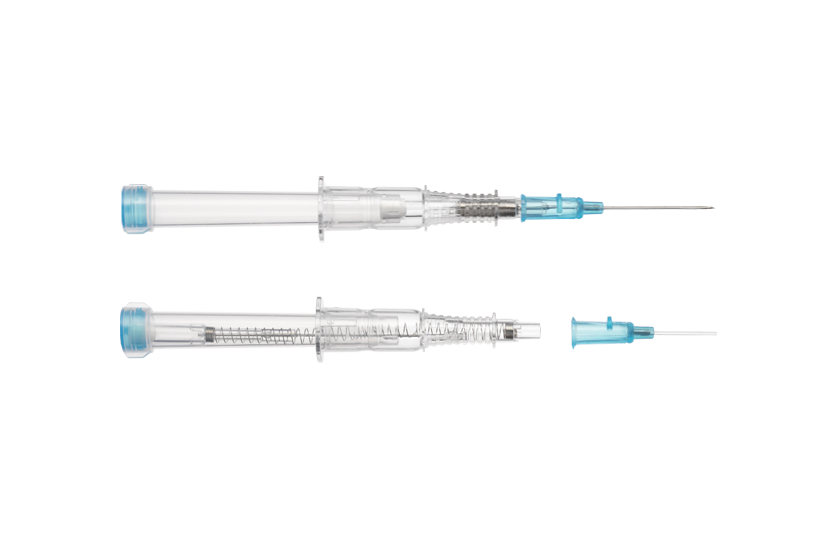

IVC-before-after (1)

Push-off tab facilitates
one-handed advancement
and indicates bevel orientation

Clear finger grips and flashback
chamber allow for handling
ease and flashback visualization

Sharp introducer needle
for insertion ease
and patient comfort

Color coded on
both catheter hub
and housing

Automatic needle retraction occurs with slight depression of the needle housing. Once activated, the needle is safely retracted into the housing, reducing the risk of needlestick injuries.

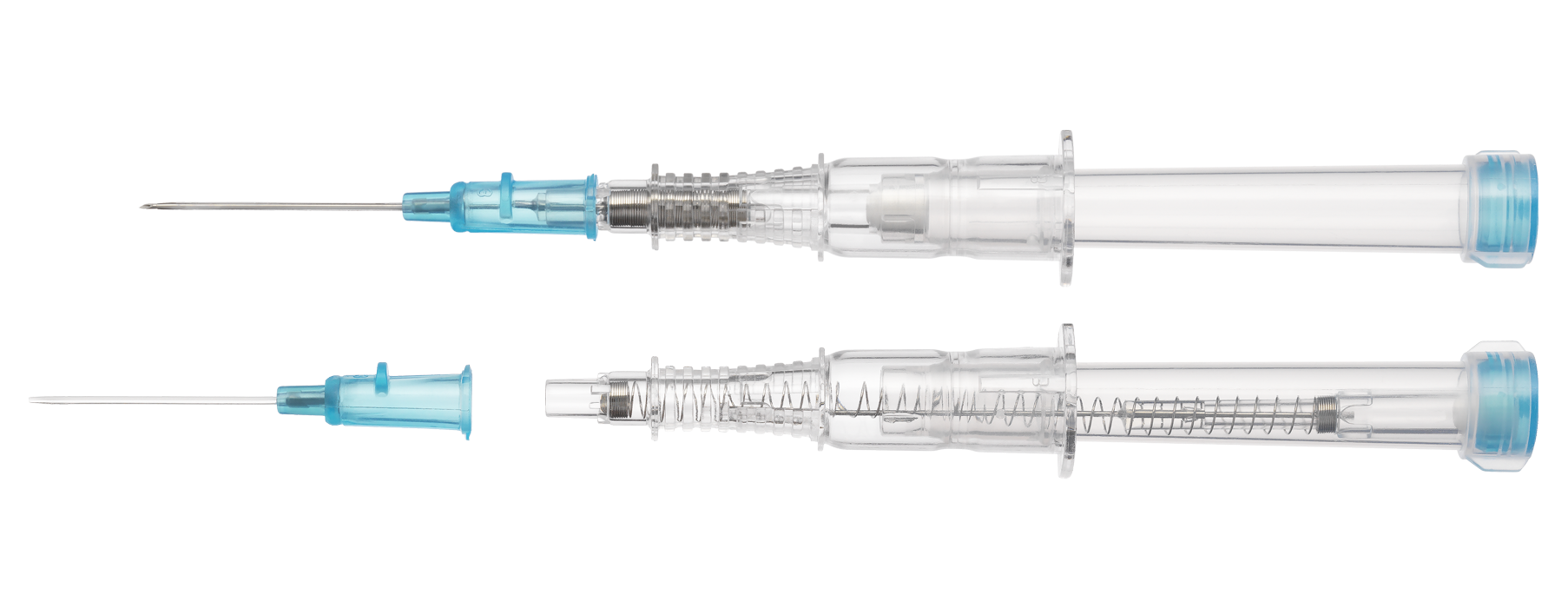

IVC-before-after (1)
VP-catheter1

1

Perform venipuncture, observing for blood return. Advance the catheter slightly to assure full catheter entry into the vein.

VP-catheter2

2

Holding the flashback chamber stationary, disengage the hub from the introducer needle and advance the catheter into the vein.

VP-catheter3

3

Before withdrawing the introducer needle from the catheter, depress the color coded end of the needle housing to activate the automated retraction.

VP-catheter4

4

The introducer needle will retract into the housing. Dispose of the introducer needle in an appropriate sharps container.

Needlestick prevention that meets your needs

  • Minimizes exposure to the contaminated needle
  • Easy to use
  • Allows for one-handed activation
  • Integrated safety mechanism
  • Once activated, the needle is safely retracted through disposal
  • Remains safe through disposal
  • Safe and effective for healthcare workers and patients

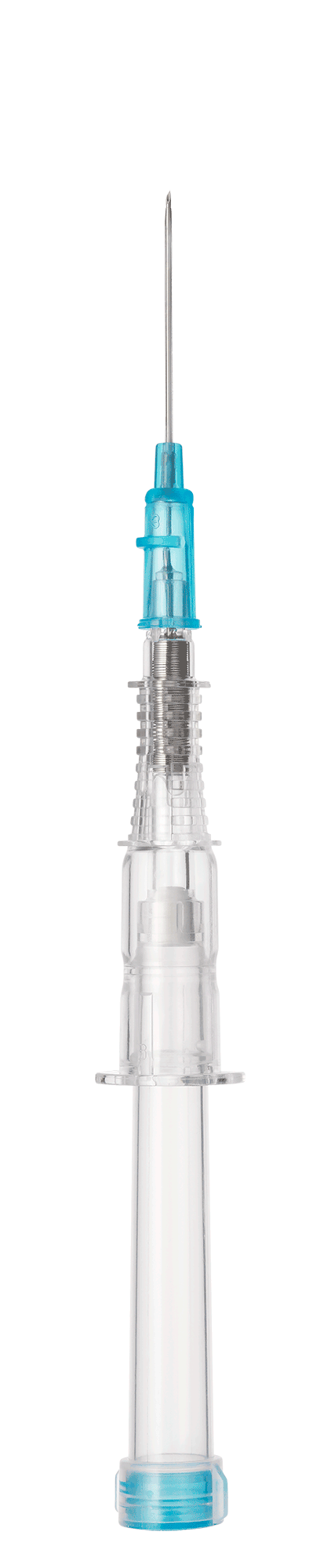

VP-IVC-22-before-after 2

REAL SAFETY

Ordering Information
Don't see what you're looking for? Contact us
VanishPoint IV Catheters
Description Needle Size Units per Case Boxes per Case Catalog Number
VanishPoint IV Catheter – Radiopaque PUR
24G 3/4” (19mm)
200
4
31221
VanishPoint IV Catheter – Radiopaque FEP*
24G 3/4” (19mm)
200
4
35221
VanishPoint IV Catheter – Radiopaque PUR
22G 1” (25mm)
200
4
31331
VanishPoint IV Catheter – Radiopaque FEP*
22G 1” (25mm)
200
4
35331
VanishPoint IV Catheter – Radiopaque PUR
20G 1 ¼” (32mm)
200
4
31441
VanishPoint IV Catheter – Radiopaque FEP*
20G 1 ¼” (32mm)
200
4
35441
VanishPoint IV Catheter – Radiopaque PUR
18G 1 ¼” (32mm)
200
4
31541
VanishPoint IV Catheter – Radiopaque FEP*
18G 1 ¼” (32mm)
200
4
35541
VanishPoint IV Catheter – Radiopaque PUR
16G 1 ¼” (32mm)
200
4
31641
VanishPoint IV Catheter – Radiopaque FEP*
16G 1 ¼” (32mm)
200
4
35641
VanishPoint IV Catheter – Radiopaque PUR
14G 1 ¼” (32mm)
200
4
31741
VanishPoint IV Catheter – Radiopaque FEP*
14G 1 ¼” (32mm)
200
4
35741

*Contact your sales representative for current lead time
