Blood Collection Set | VanishPoint®

The needle that disappears

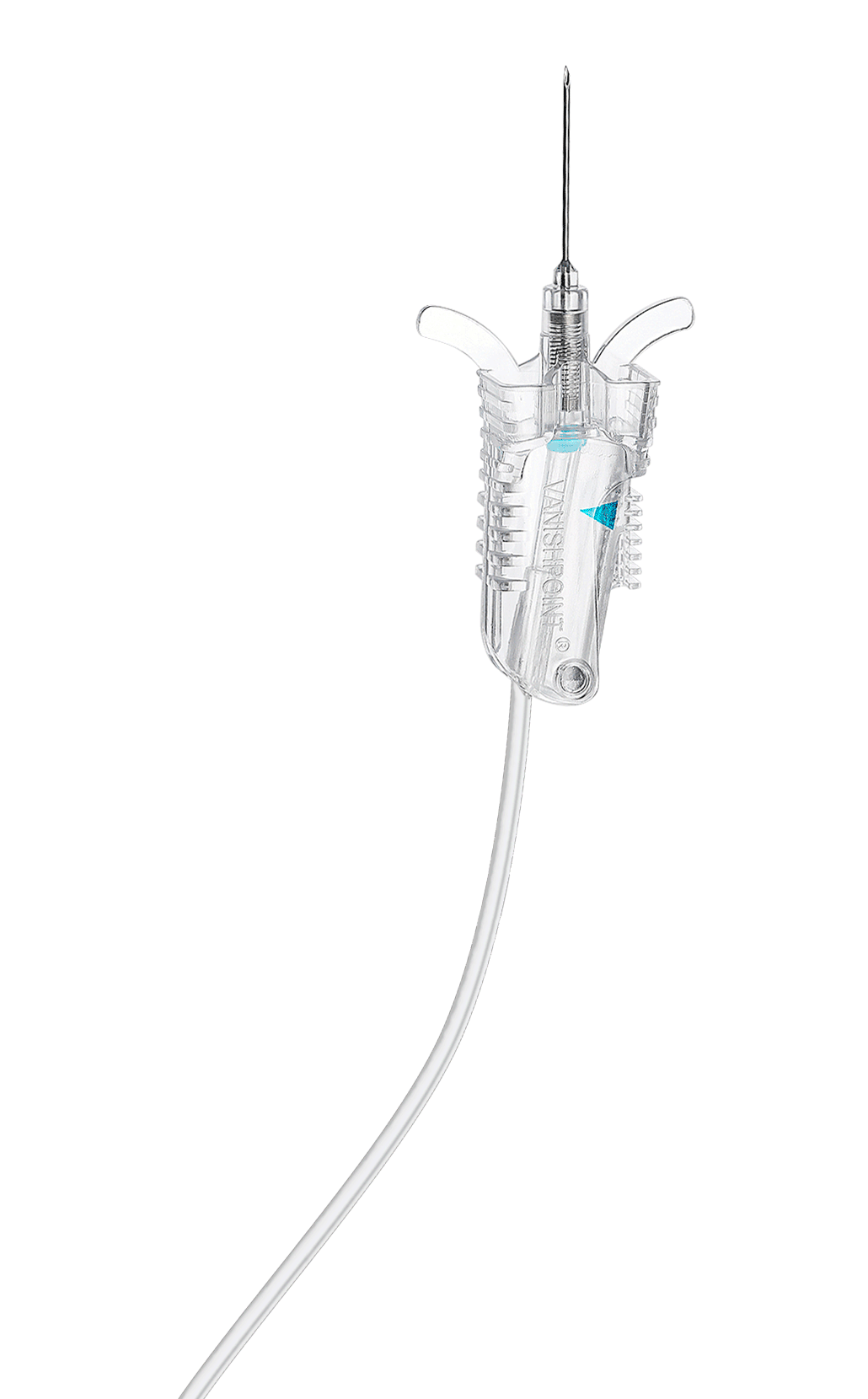

VanishPoint Blood Collection Set

RTI’s Blood Collection Set features automated in-vein retraction, which effectively reduces the risk of needlestick injuries and blood exposure.

When activated, needle retraction clamps the tubing, reducing the risk of exposure to blood. Another unique feature is the clear body, which allows for flashback visualization. The trigger design reduces the risk of inadvertent activation. VanishPoint blood collection sets are not made with natural rubber latex, PVC, or DEHP.

Product Video

Product Usage Flyer

Product Brochure

Product Flyer

Safe, Smooth Sample Collection

Automated in-vein retraction effectively reduces the risk of needlestick injuries and blood exposure.

1

Perform venipuncture, observing for blood return

2

When blood collection is complete, depress retraction trigger.

3

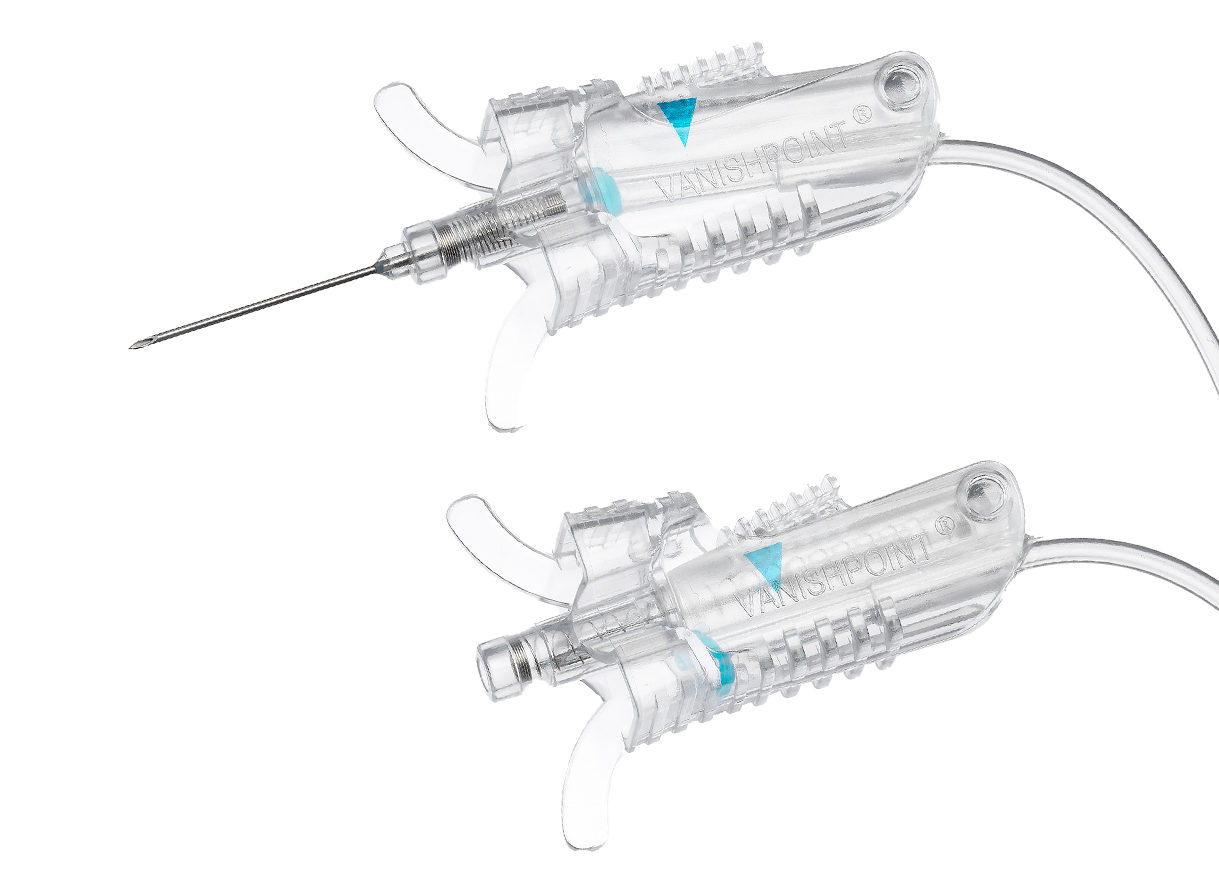

Needle automatically retracts from the patient’s vein into the device, clamping tubing.

4

Dispose of the VanishPoint Blood Collection Set in an appropriate sharps container.

Uncompromising safety for clinicians and patients

Automated Safety Mechanism
In-Vein Activation Virtually Eliminates Exposure to Needle
Kink-Resistant Tubing Available in 7” and 12” Lengths
Not Made With Natural Rubber Latex, DEHP or PVC
One-Handed Activation
Trigger Mechanism Reduces the Risk of Inadvertent Activation
Remains Safe Through Disposal
Clamps Tubing Upon Needle Retraction, Reducing Risk of Exposure to Blood
Quick and Easy to Use
Safe and Effective for Patients

REAL SAFETY

Automated in-vein retraction effectively reduces the risk of needlestick injuries during blood collection. Safety engineered devices with “automatic or semiautomatic safety features were 10 times less likely to be associated with NSIs [needlestick injuries] than were devices in which activation of the safety feature was fully manual.”*

*W. Tosini, et al., “Needlestick Injury Rates According to Different Types of Safety-Engineered Devices: Results of a French Multicenter Study,” Infection Control and Hospital Epidemiology, vol. 31, no. 4 (April 2010), pp. 402-407.

Ordering Information

Don't see what you're looking for? Contact us

VanishPoint Blood Collection Set

Needle Size	Tubing Length	Luer Adapter	Units per Case	Boxes per Case	Catalog Number
25G x ¾” (19mm)	7” (178mm)	with Luer adapter	200	4	24011
23G x ¾” (19mm)	7” (178mm)	with Luer adapter	200	4	24021
21G x ¾” (19mm)	7” (178mm)	with Luer adapter	200	4	24031
25G x ¾” (19mm)	12” (305mm)	with Luer adapter	200	4	24111
23G x ¾” (19mm)	12” (305mm)	with Luer adapter	200	4	24121
21G x ¾” (19mm)	12” (305mm)	with Luer adapter	200	4	24131
25G x ¾” (19mm)	12” (305mm)	without Luer adapter	200	4	24311
23G x ¾” (19mm)	12” (305mm)	without Luer adapter	200	4	24321
21G x ¾” (19mm)	12” (305mm)	without Luer adapter	200	4	24331
