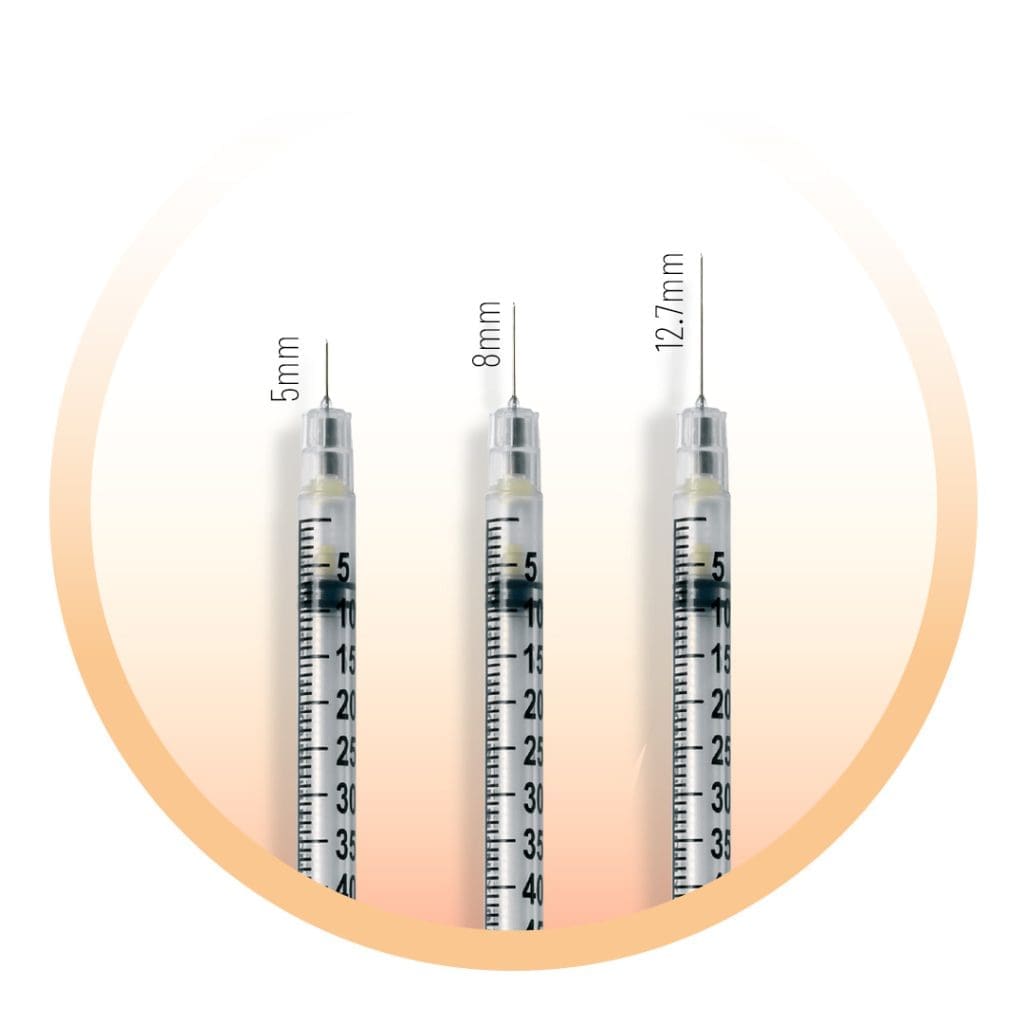

VanishPoint Insulin Safety Syringes are available with 5mm, 8mm, and 12.7mm length needles, to ensure subcutaneous insulin delivery and maximize patient comfort. VanishPoint Safety Insulin Syringes are available with half-unit increments for precise small-dose delivery.
Integrated safety mechanism allows for optimum view of syringe scale, promoting dose preparation ease & accuracy.
Clear, unobstructed
calibrations allow for
accurate dosing
Triple beveled,
lubricated needle
provides patient comfort

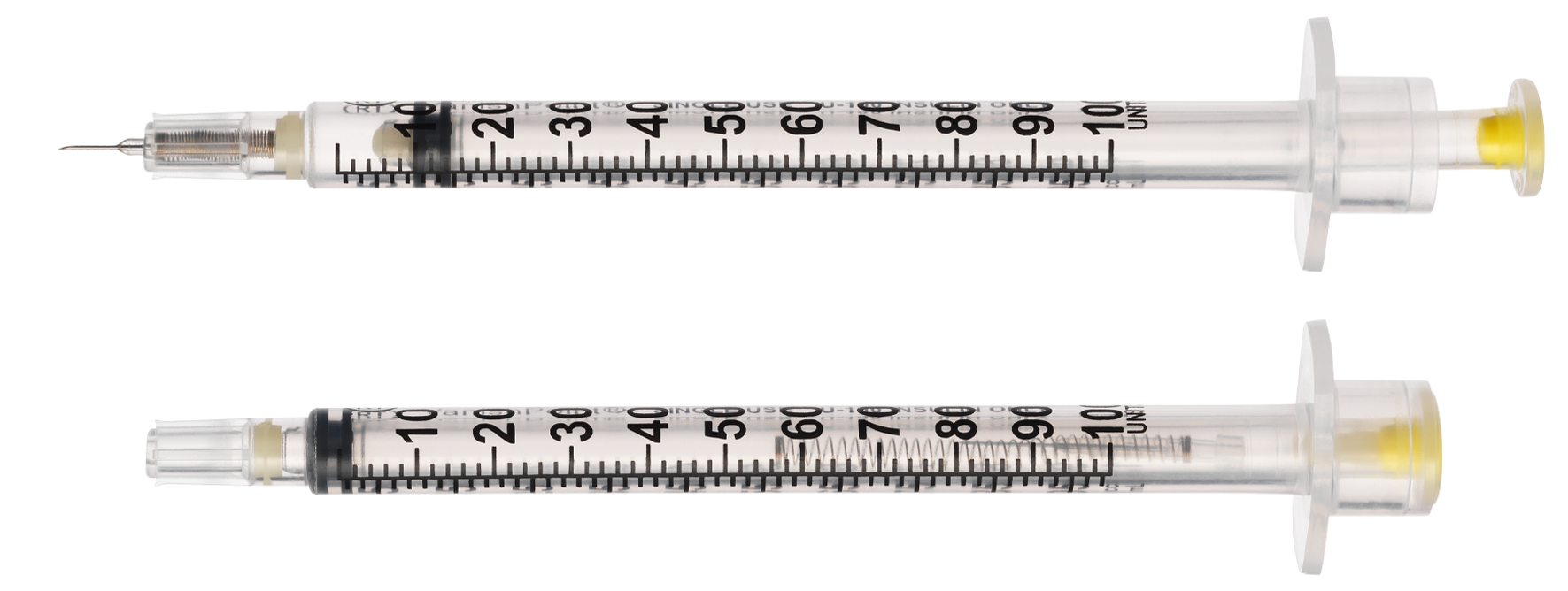

Needle retracts directly
from patient into syringe
Pre-removal activation
prevents exposure to
contaminated sharp
Shorter needles may NOT require a pinch-up technique, reducing the risk of needlestick injury.
Use standard procedure for drawing up medication.
Prepare and give injection using aseptic technique according to institutional policy.
While the needle is still in the patient, fully depress the plunger to activate retraction.
Dispose of the VanishPoint U-100 Insulin syringe in an appropriate sharps container.
| Description | Needle Size | Units per Case | Boxes per Case | Catalog Number |
|---|---|---|---|---|
|
0.5mL VanishPoint U-100 Insulin Syringe (half-unit) |
30G x 3/16” (5mm) |
800 |
8 |
15391 |
|
0.5mL VanishPoint U-100 Insulin Syringe (half-unit) |
30G x 5/16” (8mm) |
800 |
8 |
15371 |
|
0.5mL VanishPoint U-100 Insulin Syringe |
30G x 3/16” (5mm) |
800 |
8 |
15291 |
|
0.5mL VanishPoint U-100 Insulin Syringe |
30G x 5/16” (8mm) |
800 |
8 |
15271 |
|
0.5mL VanishPoint U-100 Insulin Syringe |
30G x 1/2” (12.7mm) |
800 |
8 |
15221 |
| Description | Needle Size | Units per Case | Boxes per Case | Catalog Number |
|---|---|---|---|---|
|

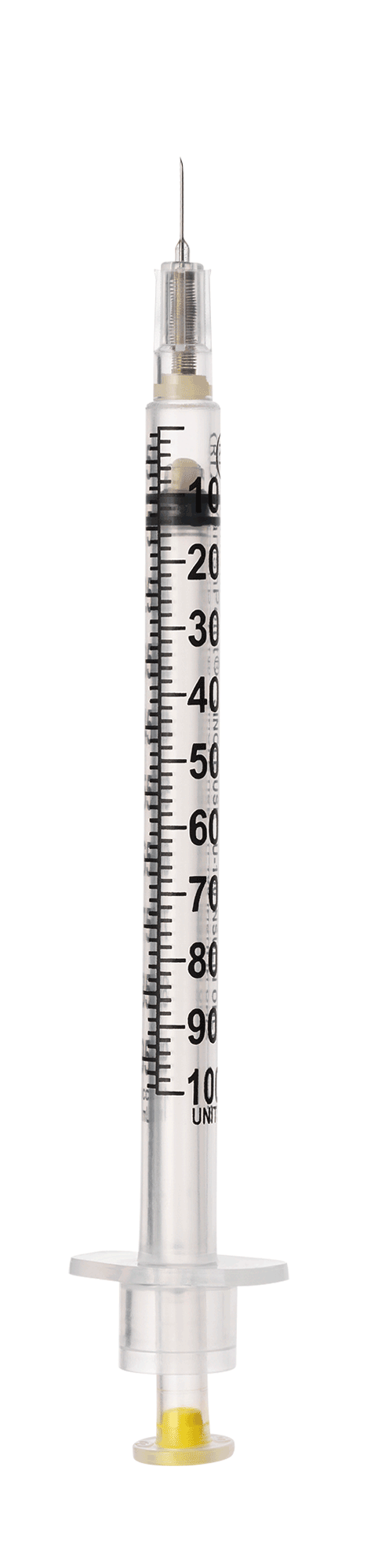

1mL VanishPoint U-100 Insulin Syringe |
30G x 3/16” (5mm) |
800 |
8 |
10291 |
|
1mL VanishPoint U-100 Insulin Syringe |
30G x 5/16” (8mm) |
800 |
8 |
10271 |
|
1mL VanishPoint U-100 Insulin Syringe |
29G x 5/16” (8mm) |
800 |
8 |
10281 |
|
1mL VanishPoint U-100 Insulin Syringe |
29G x 1/2” (12.7mm) |
800 |
8 |
10211 |
